Clozapine

(Last updated November 2011)

Molecular diagram of Clozapine

Figure 1. The molecular diagram of Clozapine.

CSP studies

REFCODE
NDNHCL
Download Word Document
FormulaC18 H19 N4 Cl1
Common NameClozapine
IUPAC Systematic Name8-Chloro-11-(4-methyl-1-piperazinyl)-5H-dibenzo(b,e)(1,4)diazepine
Other Names
CSD RefcodesNDNHCL01, NDNHCL10

Search Identifier
A
Open Chemiscope file Opens in a new tab - please be patient.
ScientistLouise Price
Date2013
PublicationNo publication planned.
Energy model
1
Download all .res files and spreadsheet (single .zip)
Study_ID1
ProgramsMOLPAK, DMACRYS (2.0.4)
Location on S Drive\CHEMISTRY_CPOSS\Olanzapine\Clozapine\exp01_molpak
Potential DescriptionGDMA2(MP2/6-31G(d,p)) + FIT
Intramolecular DescriptionMP2/6-31G(d,p)

Search Identifier
B
Open Chemiscope file Opens in a new tab - please be patient.
ScientistLouise Price
Date2025
PublicationNo publication planned.
Energy model
2
Download all .res files and spreadsheet (single .zip)
Study_ID10
ProgramsStudy_ID=20, CrystalOptimizer (2.4.7), DMACRYS (2.3.1.1)
Location on S Drive\CHEMISTRY_CPOSS\Olanzapine\Clozapine\CrystOpt
Potential DescriptionCrystalOptimizer PBE1PBE/6-31G(d,p) intramolecular + GDMA2.2(PBE1PBE/6-31G(d,p)) DMA + FIT
Intramolecular Description PBE0/6-31G(d,p)
Energy model
1
Download all .res files and spreadsheet (single .zip)
Study_ID20
ProgramsFlexible CrystalPredictor (2.?), DMACRYS 2.3.1.1
Location on S Drive\CHEMISTRY_CPOSS\Olanzapine\Clozapine\CrystPred
Potential DescriptionCrystalPredictor + DMACRYS with GDMA2.2(PBE1PBE/6-31G(d,p)) + FIT
Intramolecular Description PBE0/6-31G(d,p)

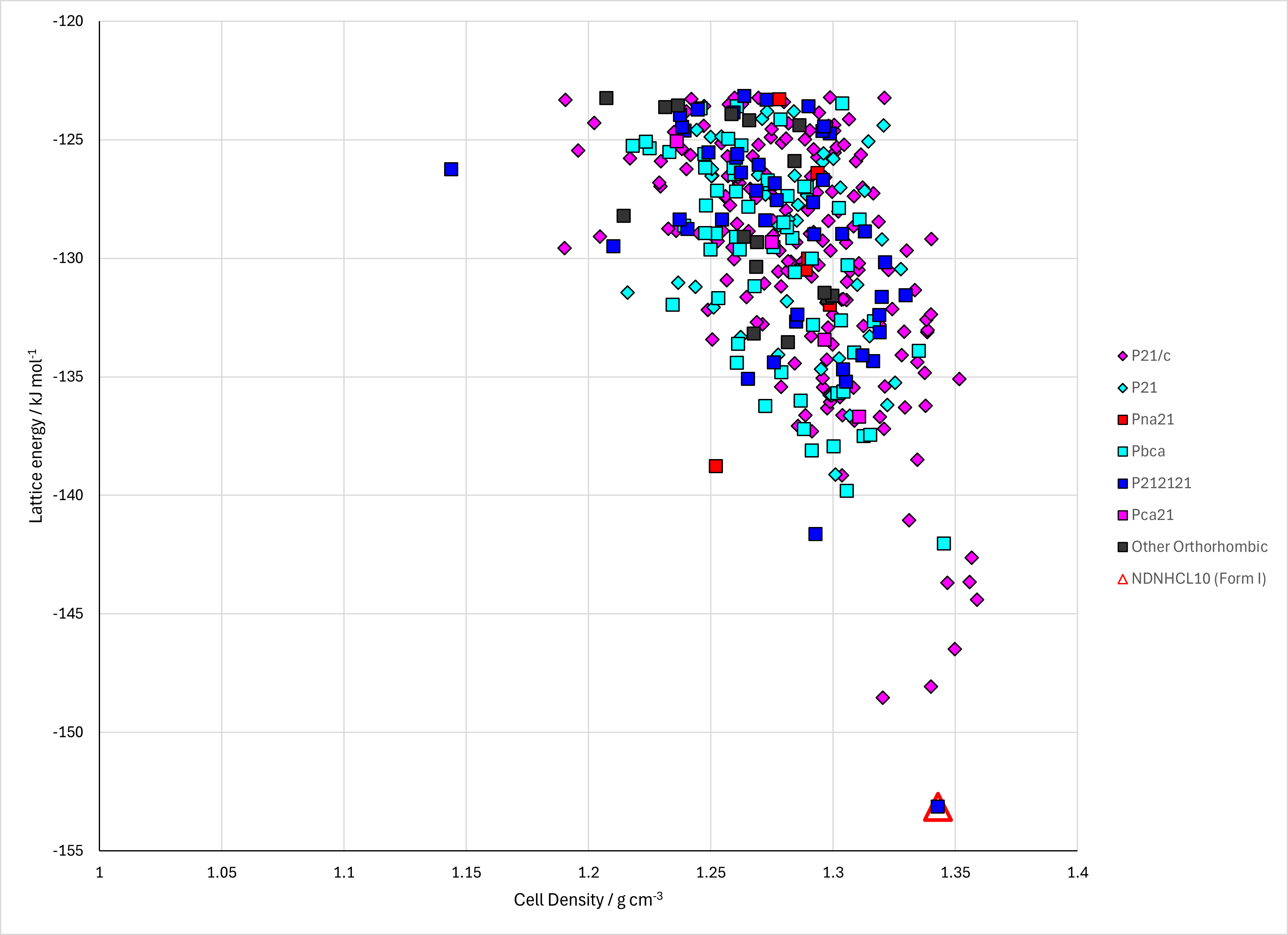

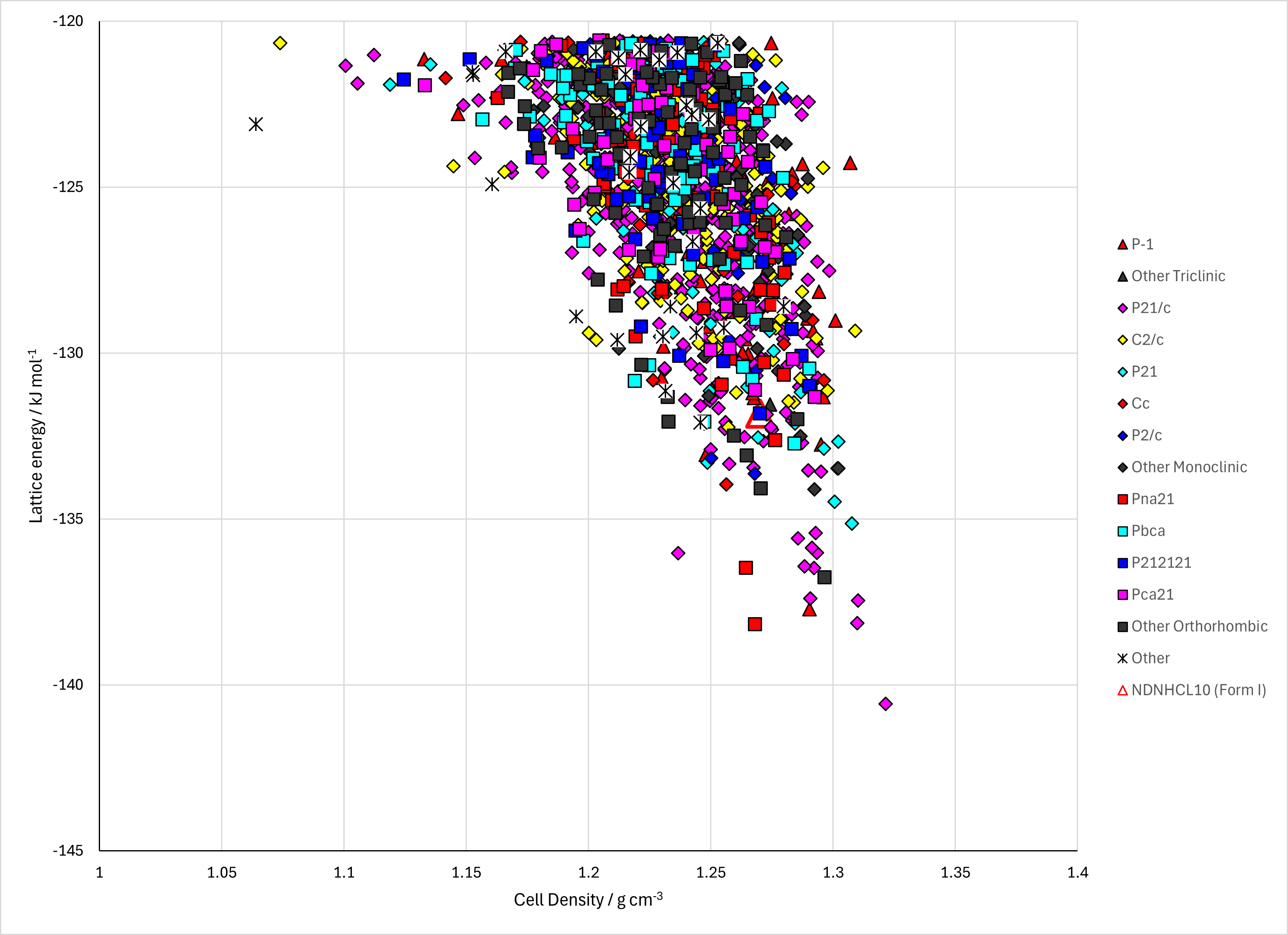

Lattice Energy Landscape of Clozapine. Energy model B2 Lattice Energy Landscape of Clozapine. Energy model A1

Figure 2. Lattice Energy Landscapes of Clozapine. Energy models B2 and A1.

CSD structures (CSD version 6.01)

Table 1. Crystallographic information and experimental information of CSD entries for Clozapine. Different polymorphs, as ascertained by structure matching of 20 molecule coordination sphere in Mercury, are coloured differently. Reference polymorphs are outlined in bold.

REFCODESpacegroupZ'a / Åb / Åc / Åα / °β / °γ / °density / g cm-3FormR factorT / KYearComment / referenceREFCODE
NDNHCL01P2121211.018.1439.5559.48890.090.090.01.3197NoneNoneNone198210.1107/S0567740882007109NDNHCL01
NDNHCL10P2121211.018.049.579.590.090.090.01.3235None3.6None197610.1039/p29760001415NDNHCL10
