Aspirin

(Last updated December 2025)

Molecular diagram of Aspirin

Figure 1. The molecular diagram of Aspirin.

CSP studies

REFCODE
ACSALA
Download Word Document
FormulaC9 H8 O4
Common NameAspirin
IUPAC Systematic Name2-Acetoxybenzoic acid
Other NamesAcetyl salicylic acid
CSD RefcodesACSALA21, ACSALA20, ACSALA23

Search Identifier
A
Open Chemiscope file Opens in a new tab - please be patient.
ScientistCarole Ouvrard
Date2004
PublicationOuvrard, C., Price, S. L., Special Issue of Crystal Growth and Design, 4(6), 1119-1127 (2004)
Energy model
1
Download all .res files and spreadsheet (single .zip)
Study_ID0
ProgramsMOLPAK, DMAREL (3.0)
Location on S Drive\CHEMISTRY_CPOSS\0-EarlySearches\home\louise_price.eminerals\Aspirin
Potential DescriptionDMA + FIT
Intramolecular DescriptionMP2/6-31G(d,p)

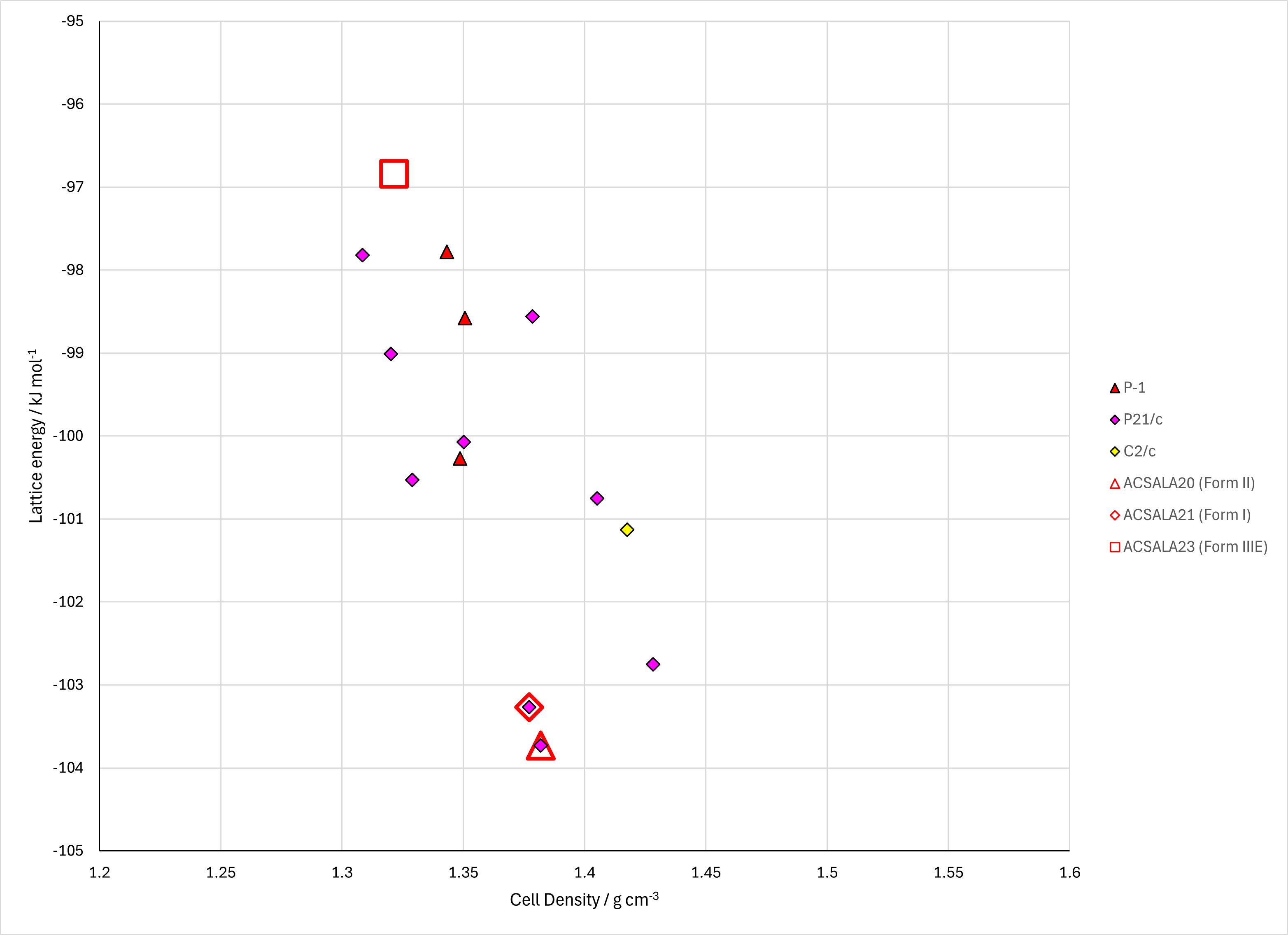

Lattice Energy Landscape of Aspirin. Energy model A1

Figure 2. Lattice Energy Landscape of Aspirin. Energy model A1.

CSD structures (CSD version 5.41)

Table 1. Crystallographic information and experimental information of CSD entries for Aspirin. Different polymorphs, as ascertained by structure matching of 20 molecule coordination sphere in Mercury, are coloured differently. Reference polymorphs are outlined in bold.

REFCODESpacegroupZ'a / Åb / Åc / Åα / °β / °γ / °density / g cm-3FormR factorT / KYearComment / referenceREFCODE
ACSALAP21/c1.011.4466.59611.38890.095.5590.01.3983polymorph I10.8None196410.1039/JR9640006036ACSALA
ACSALA01P21/c1.011.436.59111.39590.095.6890.01.4008polymorph I4.600None198510.1248/cpb.33.2641ACSALA01
ACSALA02P21/c1.011.2336.5440011.23190.095.8990.01.4571polymorph I7.97at 100 K200210.1039/b203775kACSALA02
ACSALA03P21/c1.011.2736.5550011.27190.095.82000090.01.4442polymorph I8.77at 140 K200210.1039/b203775kACSALA03
ACSALA04P21/c1.011.3056.5630011.30590.095.88000090.01.4341polymorph I8.84at 180 K200210.1039/b203775kACSALA04
ACSALA05P21/c1.011.1866.5411.21790.096.07000090.01.4664polymorph I8.76at 20 K200210.1039/b203775kACSALA05
ACSALA06P21/c1.011.346.5740011.31890.095.8790.01.4257polymorph I9.03at 220 K200210.1039/b203775kACSALA06
ACSALA07P21/c1.011.4166.59811.48390.095.60000090.01.3901polymorph I8.73at 300 K200210.1039/b203775kACSALA07
ACSALA08P21/c1.011.2046.5440011.22390.095.9590.01.4621polymorph I8.2at 60 K200210.1039/b203775kACSALA08
ACSALA09P21/c1.011.2336.5440011.23190.095.8990.01.4571polymorph I9.58at 100 K200310.1039/b203379hACSALA09
ACSALA10P21/c1.011.2336.5440011.23190.095.8990.01.4571polymorph I13.02at 100 K200310.1039/b203379hACSALA10
ACSALA11P21/c1.011.2336.5440011.23190.095.8990.01.4571polymorph I9.540at 200 K200310.1039/b203379hACSALA11
ACSALA12P21/c1.011.2336.5440011.23190.095.8990.01.4571polymorph I11.27at 300 K200310.1039/b203379hACSALA12
ACSALA13P21/c1.012.0956.4910011.32390.0111.50990.01.4468polymorph II16.22at 100 K200510.1021/ja056455bACSALA13
ACSALA14P21/c1.011.27766.551711.274190.095.83790.01.4439polymorph I3.300at 123 K200710.1002/anie.200602378ACSALA14
ACSALA15P21/c1.012.15156.506411.367790.0111.57490.01.4317polymorph II4.060180 K200710.1002/anie.200603373ACSALA15
ACSALA17P21/c1.012.26966.557511.49690.068.16390.01.3937polymorph II4.29at 293 K201010.1107/S0108768110037055ACSALA17
ACSALA19P21/c1.012.10166.472111.334490.0111.59390.01.4496II polymorph4.73at 123 K201110.1039/c1sc00430aACSALA19
ACSALA20P21/c1.012.35786.531511.496490.0112.43690.01.3951II polymorph3.62at 120 K201110.1039/c1sc00430aACSALA20
ACSALA21P21/c1.011.2686.549811.264690.095.93390.01.4471polymorph I3.31at 90 K201210.1021/cg300269nACSALA21
ACSALA23P21/c2.016.74134.7949623.802190.0111.0816090.01.3424polymorph IV2.61240 K201710.1021/acs.cgd.7b00673ACSALA23
ACSALA24P21/c2.016.65694.4446823.781290.0111.0602290.01.4566polymorph IVNone240-260 K201710.1021/acs.cgd.7b00673ACSALA24
ACSALA25P21/c1.011.45116.602811.418290.095.6990.01.3929polymorph I4.34198 K2018NoneACSALA25
