Caffeine

(Last updated May 2026)

Molecular diagram of Caffeine

Figure 1. The molecular diagram of Caffeine.

CSP studies

REFCODE
NIWFEE
Download Word Document
FormulaC8 H10 N4 O2
Common NameCaffeine
IUPAC Systematic Name1,3,7-trimethyl-2,6-dioxypurine
Other Names
CSD RefcodesNIWFEE02, NIWFEE05

Search Identifier
A
Open Chemiscope file Opens in a new tab - please be patient.
ScientistMatthew Habgood
Date2011
PublicationHabgood M 2011. Cryst Growth Des 11, 3600-3608.
Energy model
1
Download all .res files and spreadsheet (single .zip)
Study_ID11
ProgramsCrystalPredictor, CrystalOptimizer, DMACRYS (2.0.4)
Location on S Drive\CHEMISTRY_CPOSS\Caffeine\Caffeine_disorder
Potential DescriptionDMA + FIT
Intramolecular Description SCF

Search Identifier
B
Open Chemiscope file Opens in a new tab - please be patient.
ScientistNizar Issa
Datepre-2010
PublicationNo publication planned
Energy model
2
Download all .res files and spreadsheet (single .zip)
Study_ID10
ProgramsStudy_ID=20, dmaflex, DMAREL (4.1.1)
Location on S Drive\CHEMISTRY_CPOSS\0-EarlySearches\home\louise_price.eminerals\caffeine_dmaflex
Potential DescriptionDMAflex DMA + FIT
Intramolecular DescriptionMP2/6-31G(d,p)
Energy model
1
Download all .res files and spreadsheet (single .zip)
Study_ID20
ProgramsRigid CrystalPredictor, DMAREL (4.1.1)
Location on S Drive\CHEMISTRY_CPOSS\0-EarlySearches\home\louise_price.eminerals\caffeine
Potential DescriptionCrystal Predictor
Intramolecular DescriptionMP2/6-31G(d,p)

Search Identifier
C
Open Chemiscope file Opens in a new tab - please be patient.
ScientistLouise Price
DateJuly 2019
PublicationPossible Caffeine-Paracetamol cocrystal paper with Kreso
Energy model
1
Download all .res files and spreadsheet (single .zip)
Study_ID60
ProgramsRigid CrystalPredictor, DFTB3-D3, DMACRYS (2.3.0)
Location on S Drive\CHEMISTRY_CPOSS\Caffeine\Caffeine_DFTB
Potential DescriptionCrystalPredictor, followed by DFTB3-D3 refinement, followed by DMACRYS with GDMA2.2(PBE0/6-31G(d,p)) + FIT
Intramolecular Description PBE0/6-31G(d,p)

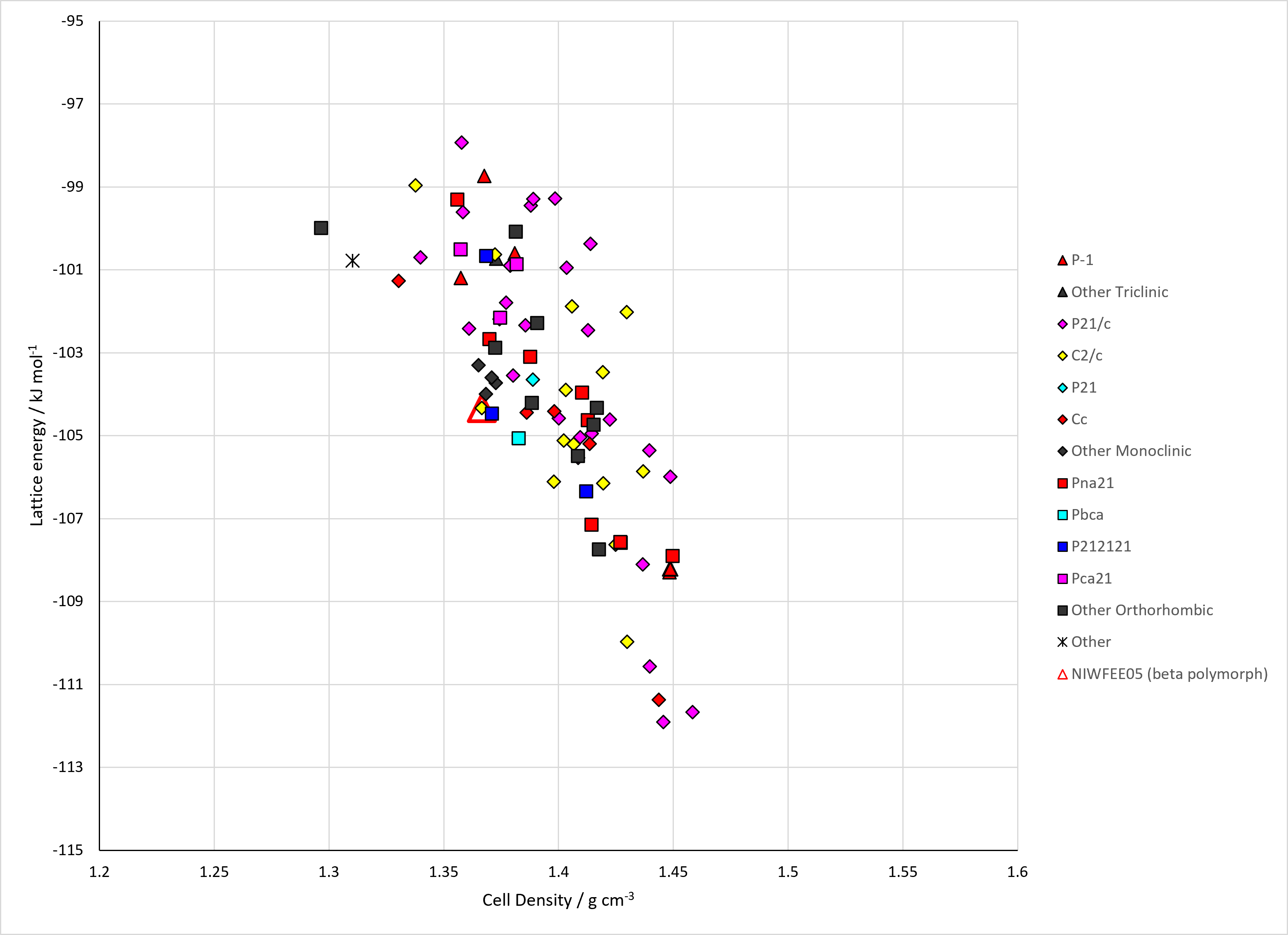

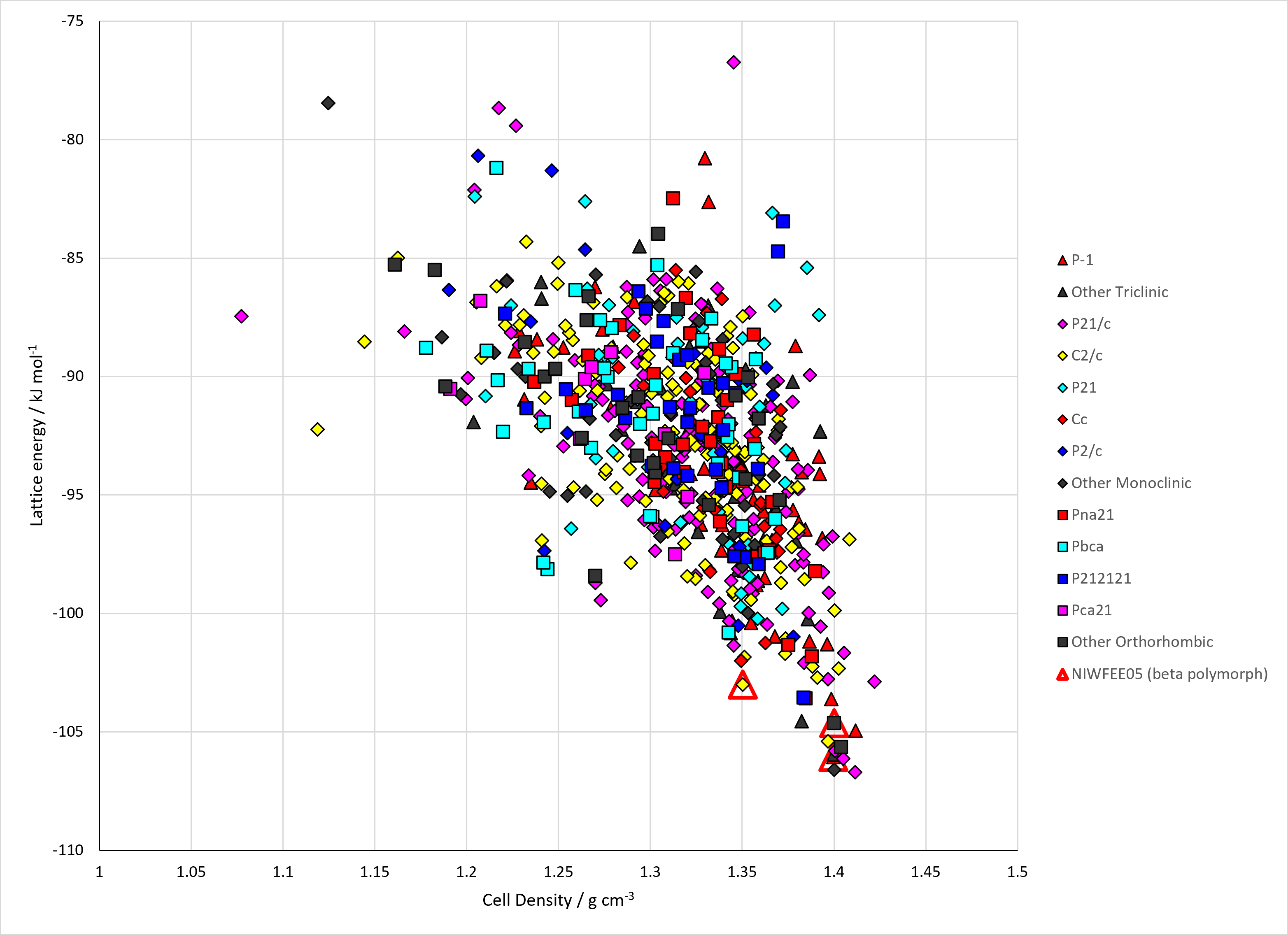

Lattice Energy Landscape of Caffeine. Energy model A1 Lattice Energy Landscape of Caffeine. Energy model C1

Figure 2. Lattice Energy Landscapes of Caffeine. Energy models A1 and C1.

CSD structures (CSD version 6.01 with Feb 2026 update)

Table 1. Crystallographic information and experimental information of CSD entries for Caffeine. Different polymorphs, as ascertained by structure matching of 20 molecule coordination sphere in Mercury, are coloured differently. Reference polymorphs are outlined in bold.

REFCODESpacegroupZ'a / Åb / Åc / Åα / °β / °γ / °density / g cm-3FormR factorT / KYearComment / referenceREFCODE
NIWFEE02R3c0.3314.937214.93726.8980090.090.0119.999994.3546alpha polymorph2.25at 278 K200510.1107/S010876810500546XNIWFEE02
NIWFEE03Cc5.043.03915.06756.9531490.099.027490.01.4482beta polymorph4.33at 298 K200710.1002/chem.200600973NIWFEE03
NIWFEE04R-3c0.1714.83114.8316.764890.090.0119.999991.5314alpha polymorph5.69at 125 K200710.1021/cg070291oNIWFEE04
NIWFEE05C2/c2.542.52114.9486.792390.097.82590.01.2565beta polymorph5.84at 100 K200710.1021/cg070291oNIWFEE05
NIWFEE06C2/c2.542.654514.96766.8198090.098.35890.01.2475beta polymorph5.41150 K202010.1016/j.chempr.2020.04.009NIWFEE06

The Word Document contains information on the disordered forms.
