2,6-Diamino-3,5-Dinitro Pyrazine

(Last updated May 2026)

Molecular diagram of 2,6-Diamino-3,5-Dinitro Pyrazine

Figure 1. The molecular diagram of 2,6-Diamino-3,5-Dinitro Pyrazine.

CSP studies

REFCODE
CIWMAW
Download Word Document
FormulaC4 H4 N6 O4
Common Name2,6-diamino-3,5-dinitro pyrazine
IUPAC Systematic Name3,5-Dinitro-pyrazine-2,6-diamine
Other Names2,6-dinitro-3,5-diamino-1,4-diazabenzene; 2,6-dinitro-3,5-diamino-1,4-pyrazine
CSD RefcodesCIWMAW01

Search Identifier
A
Open Chemiscope file Opens in a new tab - please be patient.
ScientistBinal Patel / Tom Lewis
Date2004
PublicationPrice, S. L., Patel, B., Pridhanani-Jethani, P., Torrisi, A., Trans. ACA, 39(2), 1-12 (2004)
Energy model
1
Download all .res files and spreadsheet (single .zip)
Study_ID0
ProgramsMOLPAK, DMAREL (3.0)
Location on S Drive\CHEMISTRY_CPOSS\0-EarlySearches\home\louise_price.eminerals\diamino_dinitro_pyrazine
Potential DescriptionDMA + FIT
Intramolecular DescriptionMP2/6-31G(d,p)

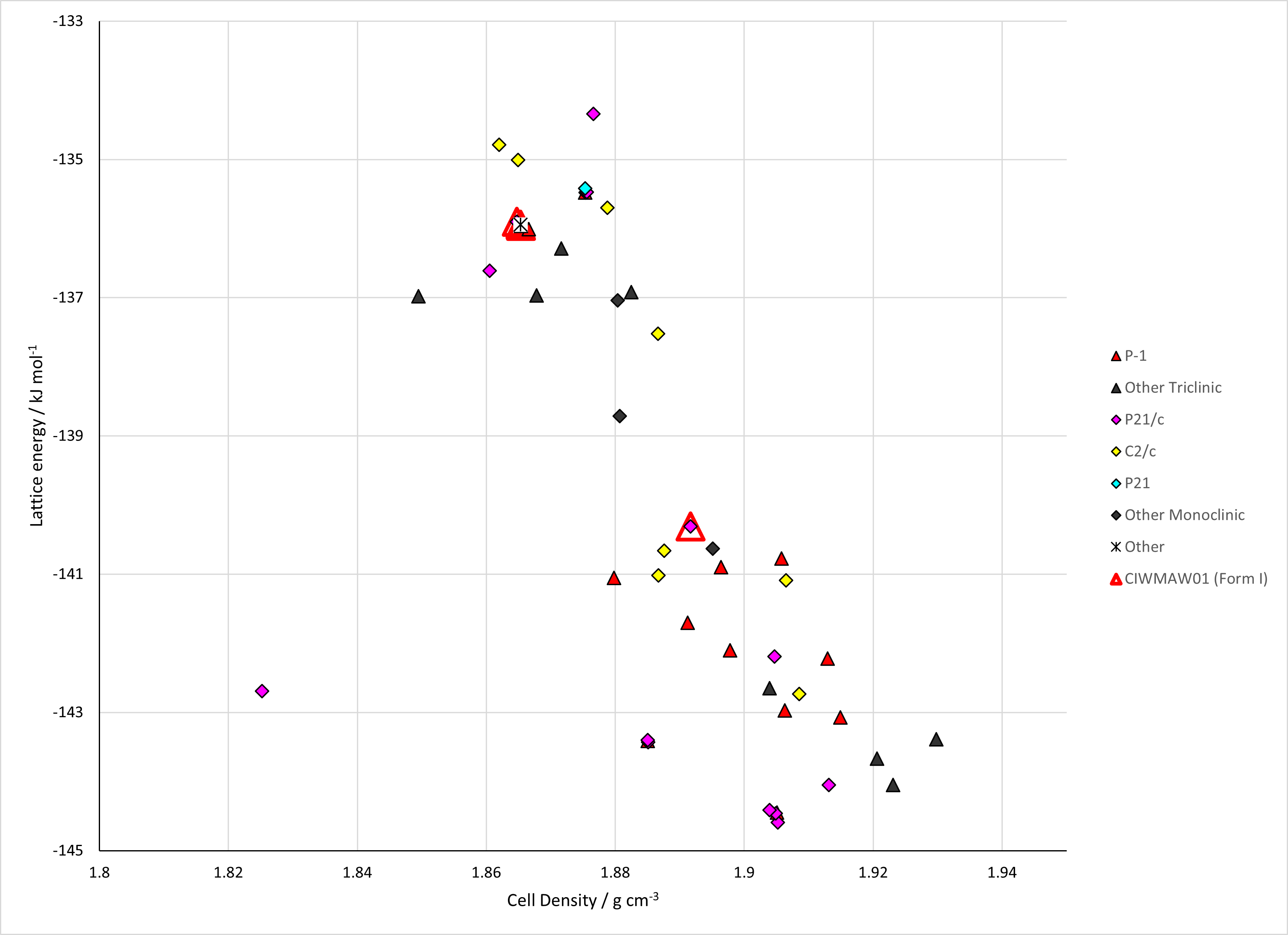

Lattice Energy Landscape of 2,6-Diamino-3,5-Dinitro Pyrazine. Energy model A1

Figure 2. Lattice Energy Landscape of 2,6-Diamino-3,5-Dinitro Pyrazine. Energy model A1.

CSD structures (CSD version 6.01 with Feb 2026 update)

Table 1. Crystallographic information and experimental information of CSD entries for 2,6-Diamino-3,5-Dinitro Pyrazine. Different polymorphs, as ascertained by structure matching of 20 molecule coordination sphere in Mercury, are coloured differently. Reference polymorphs are outlined in bold.

REFCODESpacegroupZ'a / Åb / Åc / Åα / °β / °γ / °density / g cm-3FormR factorT / KYearComment / referenceREFCODE
CIWMAW01P21/c1.09.013612.966.393690.0100.7700090.01.8115None6.42at 294 K200110.1107/S1600536801011734CIWMAW01
