Gallic Acid

(Last updated May 2026)

Molecular diagram of Gallic Acid

Figure 1. The molecular diagram of Gallic Acid.

CSP studies

REFCODE
IJUMEG
Download Word Document
FormulaC7 H6 O5
Common NameGallic Acid
IUPAC Systematic Name3,4,5-trihydroxybenzoic acid
Other Names
CSD RefcodesIJUMEG06, IJUMEG, IJUMEG04

Search Identifier
A
Open Chemiscope file Opens in a new tab - please be patient.
ScientistDoris Braun
Date2011
PublicationNo publication planned.
Energy model
2
Download all .res files and spreadsheet (single .zip)
Study_ID30
ProgramsStudy_ID=0, DMACRYS (2.0.4)
Location on S Drive\CHEMISTRY_CPOSS\GallicAcid\MOLPAKsearch_PCM
Potential DescriptionPCMdielectric=3(PBE0/aug-cc-pVTz) + GDMA2 + FIT
Intramolecular DescriptionPCMdielectric=3(PBE0/6-31G(d,p))
Energy model
1
Download all .res files and spreadsheet (single .zip)
Study_ID0
ProgramsMOLPAK, DMACRYS (2.0.4)
Location on S Drive\CHEMISTRY_CPOSS\GallicAcid\MOLPAKsearch
Potential DescriptionDMA(PBE0/aug-cc-pVTz) + GDMA2 + FIT
Intramolecular DescriptionPBE0/6-31G(d,p)

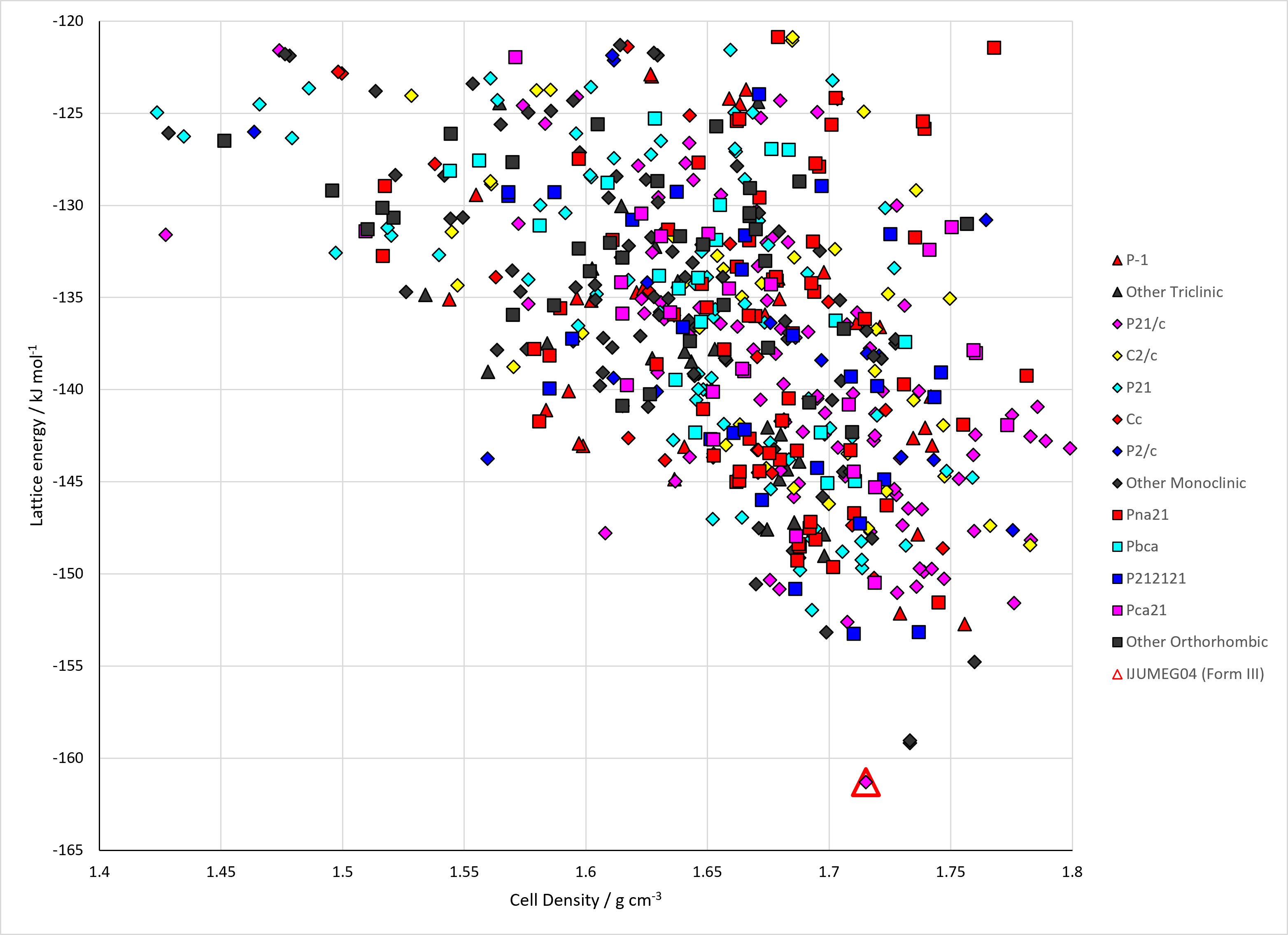

Lattice Energy Landscape of Gallic Acid. Energy model A2

Figure 2. Lattice Energy Landscape of Gallic Acid. Energy model A2.

CSD structures (CSD version 6.01 with Feb 2026 update)

Table 1. Crystallographic information and experimental information of CSD entries for Gallic Acid. Different polymorphs, as ascertained by structure matching of 20 molecule coordination sphere in Mercury, are coloured differently. Reference polymorphs are outlined in bold.

REFCODESpacegroupZ'a / Åb / Åc / Åα / °β / °γ / °density / g cm-3FormR factorT / KYearComment / referenceREFCODE
IJUMEGC2/c1.025.694.8946011.09790.0105.74690.01.6827polymorph II3.4at 90 K201110.1107/S1600536811000262IJUMEG
IJUMEG01C2/c1.025.6294.921111.221790.0106.25190.01.6632polymorph II3.18at 293 K201110.1107/S1600536811007471IJUMEG01
IJUMEG02C2/c1.025.65044.922111.230490.0106.28490.01.6604polymorph II3.73at 298K201110.1021/cg2001865IJUMEG02
IJUMEG03C2/c1.025.6754.904711.11590.0105.7790.01.6777polymorph II4.0at 100 K201210.1002/hlca.201200017IJUMEG03
IJUMEG04P21/c1.05.230305.2649524.792790.0102.1116090.01.6927polymorph III2.586298 K201310.1021/cg301506xIJUMEG04
IJUMEG05C2/c1.025.68504.9273011.250890.0106.2340090.01.6530polymorph II3.56293 K201310.1021/cg301506xIJUMEG05
IJUMEG06P-12.07.318538.253611.7148100.471990.233590.9844001.6241polymorph I4.818298 K201310.1021/cg301506xIJUMEG06
IJUMEG07P-12.07.378.2411.7379.4989.5589.281.6134polymorph I8.82363 K202310.1039/D2CE01149BIJUMEG07
