Imidazole

(Last updated May 2026)

Molecular diagram of Imidazole

Figure 1. The molecular diagram of Imidazole.

CSP studies

REFCODE
IMAZOL
Download Word Document
FormulaC3 H4 N2
Common NameImidazole
IUPAC Systematic NameImidazole
Other Names
CSD RefcodesIMAZOL06, IMAZOL25

Search Identifier
A
Open Chemiscope file Opens in a new tab - please be patient.
ScientistAntonio Torrisi
Date2004
PublicationPrice, S. L., Patel, B., Pridhanani-Jethani, P., Torrisi, A., Trans. ACA, 39(2), 1-12 (2004)
Energy model
1
Download all .res files and spreadsheet (single .zip)
Study_ID0
ProgramsMOLPAK, DMAREL (3.0)
Location on S Drive\CHEMISTRY_CPOSS\0-EarlySearches\home\louise_price.eminerals\imidazole
Potential DescriptionDMA + FIT
Intramolecular DescriptionMP2/6-31G(d,p)

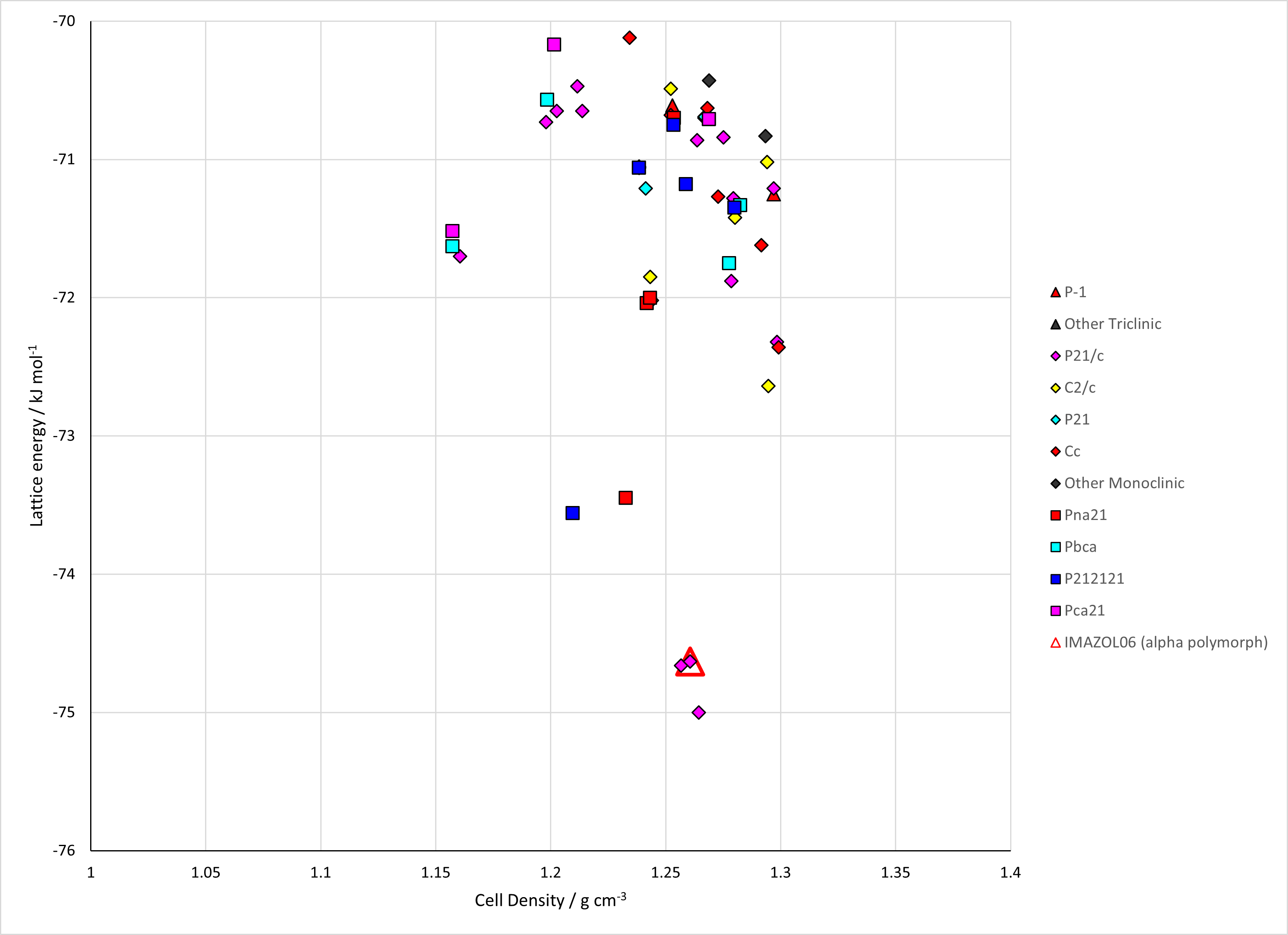

Lattice Energy Landscape of Imidazole. Energy model A1

Figure 2. Lattice Energy Landscape of Imidazole. Energy model A1.

CSD structures (CSD version 6.01 with Feb 2026 update)

Table 1. Crystallographic information and experimental information of CSD entries for Imidazole. Different polymorphs, as ascertained by structure matching of 20 molecule coordination sphere in Mercury, are coloured differently. Reference polymorphs are outlined in bold.

REFCODESpacegroupZ'a / Åb / Åc / Åα / °β / °γ / °density / g cm-3FormR factorT / KYearComment / referenceREFCODE
IMAZOL01P21/c1.07.5825.3719.7900090.061.02000090.01.2965alpha polymorph11.20None196610.1107/S0365110X66001853IMAZOL01
IMAZOL02P21/c1.07.7465.4479.7590.0117.590.01.2392alpha polymorph10.0None1971NoneIMAZOL02
IMAZOL03P21/n1.07.5835.374009.0270090.0108.7100090.01.2977alpha polymorph6.810at 173 K1999NoneIMAZOL03
IMAZOL04P21/c1.07.5825.3719.7900090.0118.9890.01.2965alpha polymorph7.4at -150 deg.C197710.1107/S0567740877008954IMAZOL04
IMAZOL06P21/c1.07.5695.366009.78590.0119.0890.01.3018alpha polymorph2.6at 103 K197910.1107/S0567740879004441IMAZOL06
IMAZOL10P21/c1.07.75.439.7390.0117.3390.01.2511alpha polymorph6.4None1969NoneIMAZOL10
IMAZOL13P21/c1.07.7325.4589.77990.0117.2690.01.2325alpha polymorph4.600None197710.1107/S0567740877008954IMAZOL13
IMAZOL14P21/n1.07.6045.3839.0560090.0108.87690.01.2891alpha polymorph3.9at 173 K2008NoneIMAZOL14
IMAZOL15P21/c1.07.685.379009.77390.0118.2900090.01.2719alpha polymorph8.2at 293 K201210.1021/cg300852tIMAZOL15
IMAZOL16P21/c1.07.5775.2829.72790.0119.6400090.01.3364alpha polymorph6.55at 293 K201210.1021/cg300852tIMAZOL16
IMAZOL17P21/c1.07.5035.2029.68890.0120.5490.01.3884alpha polymorph5.75at 293 K201210.1021/cg300852tIMAZOL17
IMAZOL18P21/c1.07.445.1279.64690.0121.3000090.01.4382alpha polymorph4.850at 293 K201210.1021/cg300852tIMAZOL18
IMAZOL19P21/c1.07.414005.0919.61890.0121.7500090.01.4647alpha polymorph3.36at 293 K201210.1021/cg300852tIMAZOL19
IMAZOL20P21/c1.07.365.0359.57490.0122.2590.01.5069alpha polymorph4.29at 293 K201210.1021/cg300852tIMAZOL20
IMAZOL21P21/c1.07.326004.9979.5560090.0122.6890.01.5356alpha polymorph7.32at 293 K201210.1021/cg300852tIMAZOL21
IMAZOL22Aba21.014.258.6235.39990.090.090.01.3631beta polymorph6.99at 293 K201210.1021/cg300852tIMAZOL22
IMAZOL23Aba21.013.9148.6035.33590.090.090.01.4161beta polymorph5.82at 293 K201210.1021/cg300852tIMAZOL23
IMAZOL24Aba21.013.8758.6755.30190.090.090.01.4173beta polymorph5.71at 293 K201210.1021/cg300852tIMAZOL24
IMAZOL25Aba21.013.8788.6485.28490.090.090.01.4260beta polymorph4.95at 293 K201210.1021/cg300852tIMAZOL25
IMAZOL26Aba21.013.8178.6245.28790.090.090.01.4355beta polymorph5.92at 293 K201210.1021/cg300852tIMAZOL26
IMAZOL27Aba21.013.7728.6345.2680090.090.090.01.4437beta polymorph6.28at 293 K201210.1021/cg300852tIMAZOL27
IMAZOL28Aba21.013.7738.6355.260790.090.090.01.4454beta polymorph5.99at 353 K201210.1021/cg300852tIMAZOL28
IMAZOL29Aba21.013.6918.6095.26390.090.090.01.4578beta polymorph5.810at 293 K201210.1021/cg300852tIMAZOL29
IMAZOL30Aba21.013.618.6245.24290.090.090.01.4698beta polymorph9.42at 293 K201210.1021/cg300852tIMAZOL30
IMAZOL31Aba21.013.3088.5815.1590.090.090.01.5377beta polymorph8.56at 293 K201210.1021/cg300852tIMAZOL31
IMAZOL32Aba21.013.1758.5555.12690.090.090.01.5652beta polymorph7.98at 293 K201210.1021/cg300852tIMAZOL32
IMAZOL33Aba21.013.0748.5215.10290.090.090.01.5911beta polymorph7.3at 293 K201210.1021/cg300852tIMAZOL33
IMAZOL34P21/n1.07.729505.44139.2594090.0110.5410090.01.2399alpha polymorph4.02295 K2021NoneIMAZOL34
IMAZOL35P21/n1.07.74855.460109.2952090.0110.64890.01.2287alpha polymorph4.22296.1 K2024NoneIMAZOL35
IMAZOL36P21/n1.07.72515.4459.259990.0110.55690.01.2398alpha polymorph6.08299.3 K202410.1016/j.optmat.2024.115964IMAZOL36
