Phthalimide

(Last updated June 2024)

Molecular diagram of Phthalimide

Figure 1. The molecular diagram of Phthalimide.

CSP studies

REFCODE
PHALIM
Download Word Document
FormulaC8 H5 N1 O2
Common NamePhthalimide
IUPAC Systematic NameIsoindole-1,3-dione
Other Names
CSD RefcodesPHALIM

Search Identifier
A
Open Chemiscope file Opens in a new tab - please be patient.
ScientistUnknown
Date2006-10
PublicationNo publication planned.
Energy model
1
Download all .res files and spreadsheet (single .zip)
Study_ID0
ProgramsMolpak, DMAREL (4.1.1)
Location on S Drive\CHEMISTRY_CPOSS\0-EarlySearches\home\louise_price.eminerals\phthalimide_fit_rigid
Potential DescriptionMP2 6-31G(d,p) DMA + fit.pots
Intramolecular DescriptionMP2/6-31G(d,p)
pDFT structures
pDFT
Download all .res files and spreadsheet (single .zip)

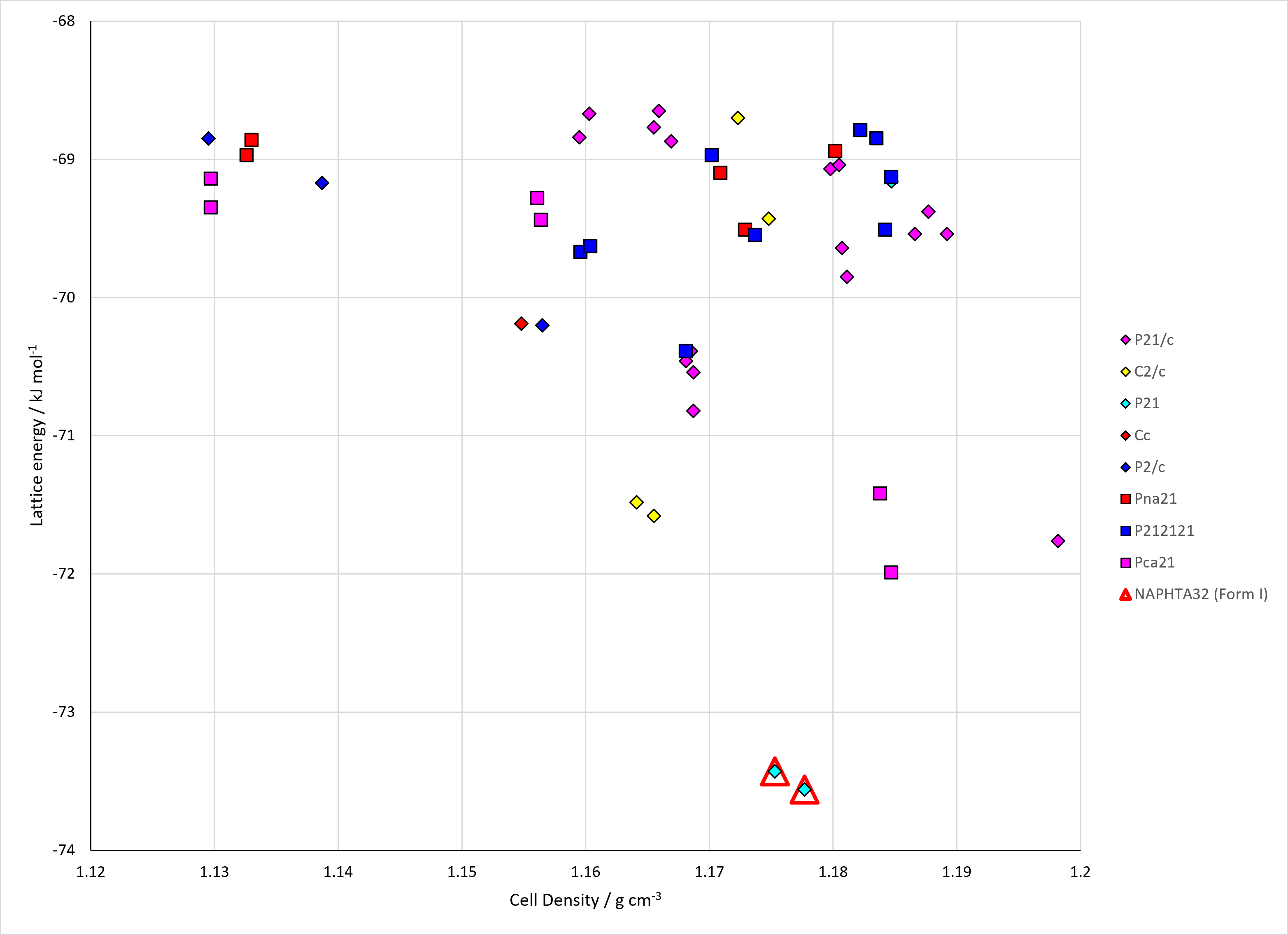

Lattice Energy Landscape of Phthalimide. Energy model A1 Relative energy comparisons by method

Figure 2. Lattice Energy Landscapes of Phthalimide. Energy models A1. Line chart comparing DFT+D energy models.

CSD structures (CSD version 5.45)

Table 1. Crystallographic information and experimental information of CSD entries for Phthalimide. Different polymorphs, as ascertained by structure matching of 20 molecule coordination sphere in Mercury, are coloured differently. Reference polymorphs are outlined in bold.

REFCODESpacegroupZ'a / Åb / Åc / Åα / °β / °γ / °density / g cm-3FormR factorT / KYearComment / referenceREFCODE
PHALIMP21/n1.022.83007.6513.8190.091.3690.01.4688None7.2None197210.1107/S056774087200250XPHALIM
PHALIM01P21/n1.03.803607.64322.81890.091.3690.01.4736None3.800None199210.1107/S0108270192000957PHALIM01
PHALIM02P21/n1.03.73037.663822.643590.090.36990.01.5096None4.29at 120 K200210.1107/S0108270101018212PHALIM02
PHALIM03P21/n1.03.752907.661922.69490.090.61790.01.4976None3.29at 173 K2009NonePHALIM03
PHALIM04P21/n1.03.719407.6624022.60490.090.26590.01.5170None2.9890 K2015NonePHALIM04
PHALIM05P21/n1.03.808007.6544022.862590.091.38000090.01.4669None4.71293 K2022NonePHALIM05

The Word Document contains some crystallization conditions.
