Trinitrobenzene

(Last updated December 2024)

Molecular diagram of Trinitrobenzene

Figure 1. The molecular diagram of Trinitrobenzene.

CSP studies

A lot of the stored crystal structures are bad structures, with molecules too close to symmetry elements and clashing. Since there are 180 problematic structures, these have been ignored rather than manually checked.

A total of 135 structures matched form III across the 9 searches. Matches to forms I and II could only be achieved by increasing the tolerances in Compack.

For all searches, a single CrystalPredictor search was carried out, followed by DMACRYS optimization with the appropriate potential.

REFCODE
TNBENZ
Download Word Document
FormulaC6 H3 N3 O6
Common NameTrinitrobenzene
IUPAC Systematic Name1,3,5-trinitrobenzene
Other Names
CSD RefcodesTNBENZ11, TNBENZ12, TNBENZ13

Search Identifier
A
Open Chemiscope file Opens in a new tab - please be patient.
ScientistAlex Aina
Date2020
PublicationAina AA, Misquitta, AJ, Price SL, J Chem Phys 2021, 154(9) 094123
Energy model
1
Download all .res files and spreadsheet (single .zip)
Study_ID23
ProgramsRigid CrystalPredictor (2.0.1), DMACRYS (2.2.1.1)
Location on S Drive\CHEMISTRY_CPOSS\Trinitrobenzene\DIFF
Potential DescriptionISA-DMA(PBE0/augA-sadlej) + non-empirical potential with an anisotropic repulsion fit to 2nd order dimer energies and a C10 damped isotropic dispersion, and rank 1 anisotropic polarization model
Intramolecular DescriptionPBE0/augA-sadlej
Energy model
2
Download all .res files and spreadsheet (single .zip)
Study_ID24
ProgramsRigid CrystalPredictor (2.0.1), DMACRYS (2.2.1.1)
Location on S Drive\CHEMISTRY_CPOSS\Trinitrobenzene\DIFF_no_pol
Potential DescriptionISA-DMA(PBE0/augA-sadlej) + non-empirical potential with an anisotropic repulsion fit to 2nd order dimer energies and a C10 damped isotropic dispersion, with no polarization model
Intramolecular DescriptionPBE0/augA-sadlej
Energy model
3
Download all .res files and spreadsheet (single .zip)
Study_ID30
ProgramsRigid CrystalPredictor (2.0.1), DMACRYS (2.2.1.1)
Location on S Drive\CHEMISTRY_CPOSS\Trinitrobenzene\diff+e_3
Potential DescriptionISA-DMA(PBE0/augA-sadlej) under polarizable continuum model with a dielectric constant of 3 + non-empirical potential with an anisotropic repulsion fit to 2nd order dimer energies and a C10 damped isotropic dispersio
Intramolecular DescriptionPBE0/augA-sadlej
Energy model
4
Download all .res files and spreadsheet (single .zip)
Study_ID31
ProgramsRigid CrystalPredictor (2.0.1), DMACRYS (2.2.1.1)
Location on S Drive\CHEMISTRY_CPOSS\Trinitrobenzene\diff+e_7
Potential DescriptionISA-DMA(PBE0/augA-sadlej) under polarizable continuum model with a dielectric constant of 7 + non-empirical potential with an anisotropic repulsion fit to 2nd order dimer energies and a C10 damped isotropic dispersio
Intramolecular DescriptionPBE0/augA-sadlej
Energy model
5
Download all .res files and spreadsheet (single .zip)
Study_ID32
ProgramsRigid CrystalPredictor (2.0.1), DMACRYS (2.2.1.1)
Location on S Drive\CHEMISTRY_CPOSS\Trinitrobenzene\diff+e_11
Potential DescriptionISA-DMA(PBE0/augA-sadlej) under polarizable continuum model with a dielectric constant of 11 + non-empirical potential with an anisotropic repulsion fit to 2nd order dimer energies and a C10 damped isotropic dispersio
Intramolecular DescriptionPBE0/augA-sadlej
Energy model
6
Download all .res files and spreadsheet (single .zip)
Study_ID22
ProgramsRigid CrystalPredictor (2.0.1), DMACRYS (2.2.1.1)
Location on S Drive\CHEMISTRY_CPOSS\Trinitrobenzene\Model0_Aniso
Potential DescriptionISA-DMA(PBE0/augA-sadlej) + non-empirical potential with an anisotropic repulsion fit to 1st order dimer energies and a C10 damped isotropic dispersion, and rank 1 anisotropic polarization model
Intramolecular DescriptionPBE0/augA-sadlej
Energy model
7
Download all .res files and spreadsheet (single .zip)
Study_ID21
ProgramsRigid CrystalPredictor (2.0.1), DMACRYS (2.2.1.1)
Location on S Drive\CHEMISTRY_CPOSS\Trinitrobenzene\Model0_Iso
Potential DescriptionISA-DMA(PBE0/augA-sadlej) + non-empirical potential with an isotropic repulsion fit to 1st order dimer energies and a C10 damped isotropic dispersion, and rank 1 anisotropic polarization model.
Intramolecular DescriptionPBE0/augA-sadlej
Energy model
8
Download all .res files and spreadsheet (single .zip)
Study_ID20
ProgramsRigid CrystalPredictor (2.0.1), DMACRYS (2.2.1.1)
Location on S Drive\CHEMISTRY_CPOSS\Trinitrobenzene\FIT+ISA
Potential DescriptionISA-DMA(PBE0/augA-sadlej) + FIT
Intramolecular DescriptionPBE0/augA-sadlej
Energy model
9
Download all .res files and spreadsheet (single .zip)
Study_ID25
ProgramsRigid CrystalPredictor (2.0.1), DMACRYS (2.2.1.1)
Location on S Drive\CHEMISTRY_CPOSS\Trinitrobenzene\FIT+GDMA
Potential DescriptionGDMA(PBE0/6-31(d,p)) + FIT
Intramolecular DescriptionPBE0/augA-sadlej

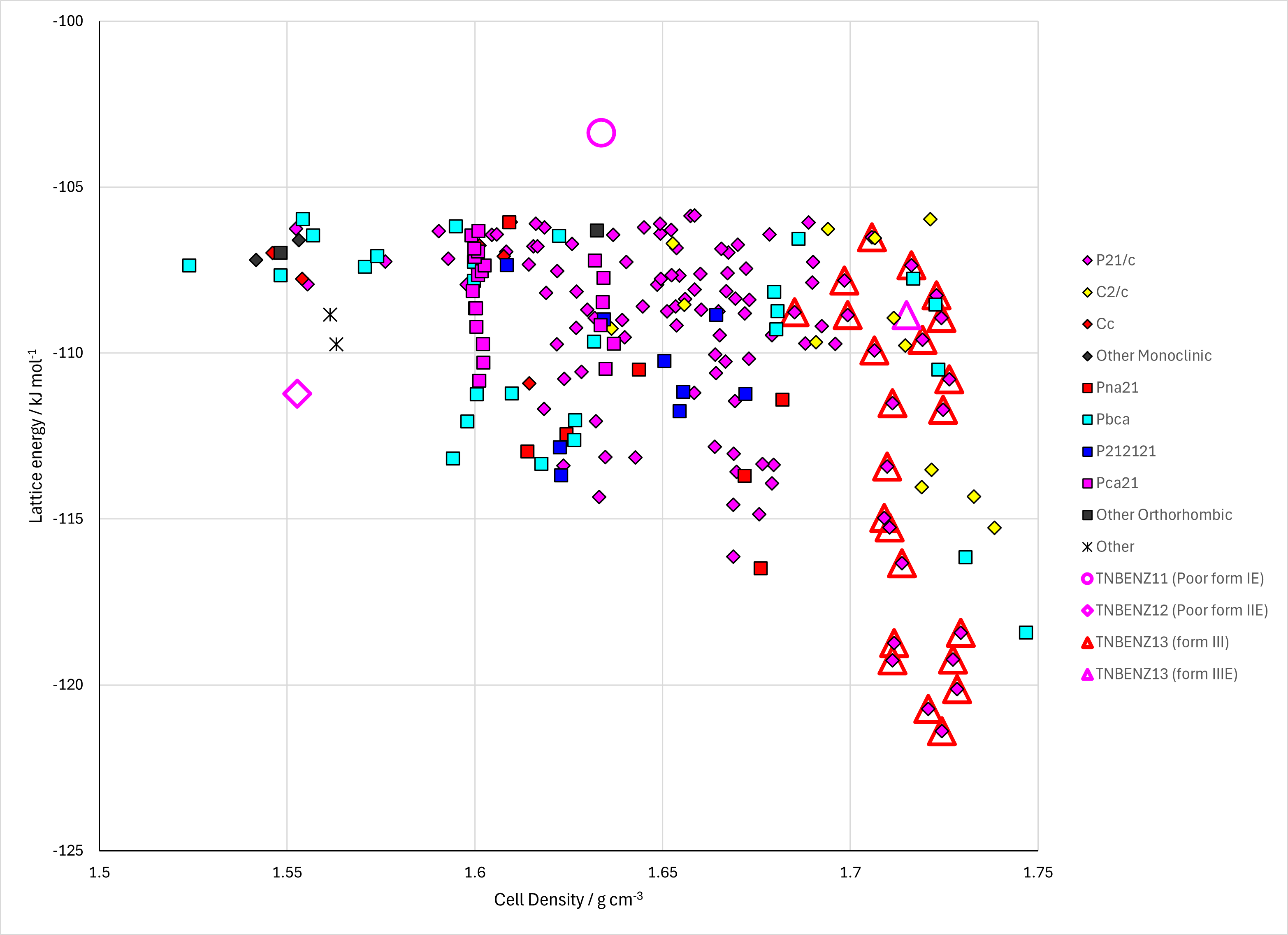

Lattice Energy Landscape of Trinitrobenzene. Energy model A1

Figure 2. Lattice Energy Landscape of Trinitrobenzene. Energy model A1.

CSD structures (CSD version 5.45 with Mar Jun and Sep 2024 update)

Table 1. Crystallographic information and experimental information of CSD entries for Trinitrobenzene. Different polymorphs, as ascertained by structure matching of 20 molecule coordination sphere in Mercury, are coloured differently. Reference polymorphs are outlined in bold.

REFCODESpacegroupZ'a / Åb / Åc / Åα / °β / °γ / °density / g cm-3FormR factorT / KYearComment / referenceREFCODE
TNBENZ10Pbca2.09.7826.9412.8290.090.090.01.6762polymorph I4.600None197210.1107/S0567740872002067TNBENZ10
TNBENZ11Pbca2.012.5879.6840026.8690.090.090.01.7293polymorph I4.5at 183 K200410.1002/anie.200352253TNBENZ11
TNBENZ12Pca212.09.29718.739.6330090.090.090.01.6876polymorph II3.97at 120 K200410.1002/anie.200352253TNBENZ12
TNBENZ13P21/c1.012.8965.72311.28790.098.1990.01.7167polymorph III6.09at 183 K200410.1002/anie.200352253TNBENZ13
TNBENZ14Pbca2.012.63889.635726.773890.090.090.01.7364polymorph I3.73130 K202010.1021/acs.cgd.9b01449TNBENZ14
